End-to-end walkthrough

Train an explainable xAAEnet on a binary image task, then relate latent codes to interpretable feature scores.

Setup

Install the package, then run the sections below. Each step imports what it needs from tell_me_why (or fastai for the dataset):

pip install tmw-xai

1. Binary data: cats vs dogs (PETS)

Each image file name starts with the breed. fastai’s usual rule labels cats when the breed name starts with an uppercase letter and dogs otherwise.

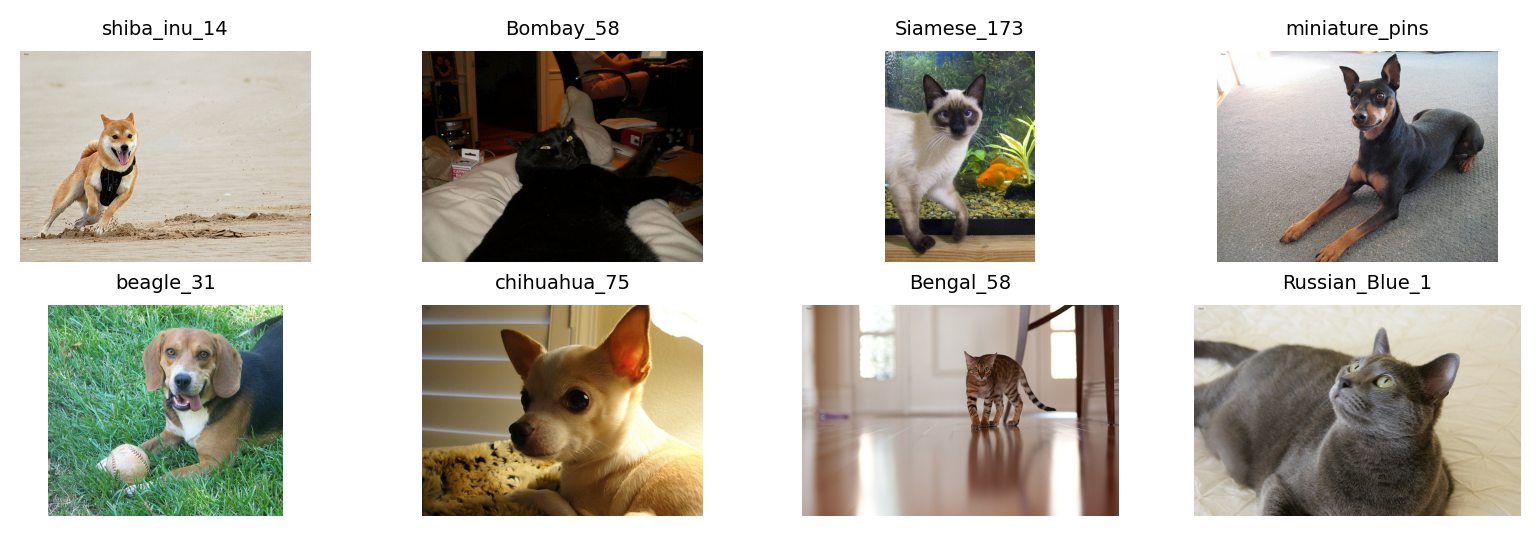

Sample images from the Oxford-IIIT Pet dataset used in this walkthrough:

█

 |----------------------------------------| 0.00% [0/811706944 00:00<?]
 |----------------------------------------| 0.00% [8192/811706944 00:00<00:13]
 |----------------------------------------| 0.93% [7569408/811706944 00:00<01:00]
 |----------------------------------------| 1.22% [9904128/811706944 00:00<00:49]
 |----------------------------------------| 1.56% [12689408/811706944 00:00<00:38]
 |----------------------------------------| 1.98% [16097280/811706944 00:00<00:33]
 |----------------------------------------| 2.45% [19898368/811706944 00:00<00:27]
 |█---------------------------------------| 3.00% [24330240/811706944 00:00<00:25]
 |█---------------------------------------| 3.59% [29114368/811706944 00:00<00:22]
 |█---------------------------------------| 4.23% [34365440/811706944 00:00<00:20]
 |█---------------------------------------| 4.92% [39903232/811706944 00:00<00:18]
 |██--------------------------------------| 5.65% [45842432/811706944 00:01<00:17]
 |██--------------------------------------| 6.41% [52019200/811706944 00:01<00:17]
 |██--------------------------------------| 7.16% [58097664/811706944 00:01<00:16]
 |███-------------------------------------| 7.94% [64479232/811706944 00:01<00:15]
 |███-------------------------------------| 8.74% [70959104/811706944 00:01<00:15]
 |███-------------------------------------| 9.55% [77553664/811706944 00:01<00:14]
 |████------------------------------------| 10.38% [84271104/811706944 00:01<00:14]
 |████------------------------------------| 11.20% [90882048/811706944 00:01<00:13]
 |████------------------------------------| 12.04% [97705984/811706944 00:01<00:13]
 |█████-----------------------------------| 12.88% [104562688/811706944 00:01<00:13]
 |█████-----------------------------------| 13.74% [111517696/811706944 00:02<00:13]
 |█████-----------------------------------| 14.60% [118472704/811706944 00:02<00:12]
 |██████----------------------------------| 15.46% [125526016/811706944 00:02<00:12]
 |██████----------------------------------| 16.35% [132677632/811706944 00:02<00:12]
 |██████----------------------------------| 17.24% [139902976/811706944 00:02<00:11]
 |███████---------------------------------| 18.13% [147193856/811706944 00:02<00:11]
 |███████---------------------------------| 19.03% [154435584/811706944 00:02<00:11]
 |███████---------------------------------| 19.91% [161636352/811706944 00:02<00:11]
 |████████--------------------------------| 20.80% [168828928/811706944 00:02<00:11]
 |████████--------------------------------| 21.69% [176037888/811706944 00:03<00:11]
 |█████████-------------------------------| 22.58% [183320576/811706944 00:03<00:10]
 |█████████-------------------------------| 23.49% [190644224/811706944 00:03<00:10]
 |█████████-------------------------------| 24.39% [197984256/811706944 00:03<00:10]
 |██████████------------------------------| 25.29% [205275136/811706944 00:03<00:10]
 |██████████------------------------------| 26.19% [212615168/811706944 00:03<00:10]
 |██████████------------------------------| 27.10% [219979776/811706944 00:03<00:10]
 |███████████-----------------------------| 28.01% [227336192/811706944 00:03<00:10]
 |███████████-----------------------------| 28.91% [234676224/811706944 00:04<00:09]
 |███████████-----------------------------| 29.82% [242065408/811706944 00:04<00:09]
 |████████████----------------------------| 30.74% [249528320/811706944 00:04<00:09]
 |████████████----------------------------| 31.66% [256966656/811706944 00:04<00:09]
 |█████████████---------------------------| 32.57% [264396800/811706944 00:04<00:09]
 |█████████████---------------------------| 33.49% [271802368/811706944 00:04<00:09]
 |█████████████---------------------------| 34.41% [279281664/811706944 00:04<00:08]
 |██████████████--------------------------| 35.33% [286744576/811706944 00:04<00:08]
 |██████████████--------------------------| 36.24% [294125568/811706944 00:05<00:08]
 |██████████████--------------------------| 37.14% [301498368/811706944 00:05<00:08]
 |███████████████-------------------------| 38.06% [308944896/811706944 00:05<00:08]
 |███████████████-------------------------| 38.98% [316399616/811706944 00:05<00:08]
 |███████████████-------------------------| 39.90% [323837952/811706944 00:05<00:08]
 |████████████████------------------------| 40.81% [331243520/811706944 00:05<00:08]
 |████████████████------------------------| 41.72% [338640896/811706944 00:05<00:08]
 |█████████████████-----------------------| 42.63% [346013696/811706944 00:05<00:07]
 |█████████████████-----------------------| 43.54% [353402880/811706944 00:06<00:07]
 |█████████████████-----------------------| 44.45% [360783872/811706944 00:06<00:07]
 |██████████████████----------------------| 45.36% [368205824/811706944 00:06<00:07]
 |██████████████████----------------------| 46.28% [375660544/811706944 00:06<00:07]
 |██████████████████----------------------| 47.20% [383148032/811706944 00:06<00:07]
 |███████████████████---------------------| 48.13% [390668288/811706944 00:06<00:06]
 |███████████████████---------------------| 49.06% [398221312/811706944 00:06<00:06]
 |███████████████████---------------------| 49.99% [405766144/811706944 00:06<00:06]
 |████████████████████--------------------| 50.92% [413343744/811706944 00:06<00:06]
 |████████████████████--------------------| 51.86% [420921344/811706944 00:06<00:06]
 |█████████████████████-------------------| 52.79% [428474368/811706944 00:07<00:06]
 |█████████████████████-------------------| 53.72% [436035584/811706944 00:07<00:06]
 |█████████████████████-------------------| 54.65% [443621376/811706944 00:07<00:06]
 |██████████████████████------------------| 55.59% [451223552/811706944 00:07<00:05]
 |██████████████████████------------------| 56.52% [458809344/811706944 00:07<00:05]
 |██████████████████████------------------| 57.46% [466378752/811706944 00:07<00:05]
 |███████████████████████-----------------| 58.39% [473964544/811706944 00:07<00:05]
 |███████████████████████-----------------| 59.32% [481542144/811706944 00:07<00:05]
 |████████████████████████----------------| 60.26% [489111552/811706944 00:08<00:05]
 |████████████████████████----------------| 61.19% [496689152/811706944 00:08<00:05]
 |████████████████████████----------------| 62.13% [504291328/811706944 00:08<00:05]
 |█████████████████████████---------------| 63.06% [511893504/811706944 00:08<00:04]
 |█████████████████████████---------------| 64.00% [519462912/811706944 00:08<00:04]
 |█████████████████████████---------------| 64.93% [527073280/811706944 00:08<00:04]
 |██████████████████████████--------------| 65.87% [534675456/811706944 00:08<00:04]
 |██████████████████████████--------------| 66.81% [542302208/811706944 00:08<00:04]
 |███████████████████████████-------------| 67.75% [549937152/811706944 00:09<00:04]
 |███████████████████████████-------------| 68.69% [557522944/811706944 00:09<00:04]
 |███████████████████████████-------------| 69.62% [565116928/811706944 00:09<00:04]
 |████████████████████████████------------| 70.55% [572694528/811706944 00:09<00:03]
 |████████████████████████████------------| 71.49% [580272128/811706944 00:09<00:03]
 |████████████████████████████------------| 72.42% [587825152/811706944 00:09<00:03]
 |█████████████████████████████-----------| 73.35% [595378176/811706944 00:09<00:03]
 |█████████████████████████████-----------| 74.28% [602947584/811706944 00:09<00:03]
 |██████████████████████████████----------| 75.22% [610549760/811706944 00:09<00:03]
 |██████████████████████████████----------| 76.16% [618168320/811706944 00:10<00:03]
 |██████████████████████████████----------| 77.09% [625778688/811706944 00:10<00:03]
 |███████████████████████████████---------| 78.03% [633405440/811706944 00:10<00:02]
 |███████████████████████████████---------| 78.97% [641040384/811706944 00:10<00:02]
 |███████████████████████████████---------| 79.92% [648691712/811706944 00:10<00:02]
 |████████████████████████████████--------| 80.86% [656326656/811706944 00:10<00:02]
 |████████████████████████████████--------| 81.80% [663953408/811706944 00:10<00:02]
 |█████████████████████████████████-------| 82.73% [671563776/811706944 00:10<00:02]
 |█████████████████████████████████-------| 83.67% [679182336/811706944 00:11<00:02]
 |█████████████████████████████████-------| 84.61% [686817280/811706944 00:11<00:02]
 |██████████████████████████████████------| 85.56% [694468608/811706944 00:11<00:01]
 |██████████████████████████████████------| 86.50% [702111744/811706944 00:11<00:01]
 |██████████████████████████████████------| 87.44% [709771264/811706944 00:11<00:01]
 |███████████████████████████████████-----| 88.39% [717447168/811706944 00:11<00:01]
 |███████████████████████████████████-----| 89.33% [725131264/811706944 00:11<00:01]
 |████████████████████████████████████----| 90.28% [732807168/811706944 00:11<00:01]
 |████████████████████████████████████----| 91.22% [740474880/811706944 00:11<00:01]
 |████████████████████████████████████----| 92.17% [748158976/811706944 00:12<00:01]
 |█████████████████████████████████████---| 93.12% [755843072/811706944 00:12<00:00]
 |█████████████████████████████████████---| 94.07% [763535360/811706944 00:12<00:00]
 |██████████████████████████████████████--| 95.01% [771219456/811706944 00:12<00:00]
 |██████████████████████████████████████--| 95.96% [778928128/811706944 00:12<00:00]
 |██████████████████████████████████████--| 96.91% [786636800/811706944 00:12<00:00]
 |███████████████████████████████████████-| 97.86% [794361856/811706944 00:12<00:00]
 |███████████████████████████████████████-| 98.82% [802095104/811706944 00:12<00:00]
 |███████████████████████████████████████-| 99.77% [809811968/811706944 00:12<00:00]
 |████████████████████████████████████████| 100.00% [811712512/811706944 00:12<00:00]

2. Train an explainable model

We use the built-in AAE (ResNet-34 encoder + xAAEnet blocks). For a custom encoder, use EncoderWithAAEBlocks instead (documented under Add xAAEnet Blocks to a User Encoder).

Build fastai dataloaders on PETS (300×300 here; match AAE(input_size=…)), then run train_xaaenet (three phases; increase epochs_* for real runs).

Training dataloaders

For train_xaaenet, we label cats vs dogs from the file name (uppercase breed → cat) and resize to 300×300 (same value as AAE(input_size=300) below).

from fastai.vision.all import (
    CategoryBlock,
    DataBlock,
    ImageBlock,
    RandomSplitter,
    Resize,
)

def pet_species(path):
    """Cat breeds start with an uppercase letter in the PETS file names."""
    return "cat" if path.name[0].isupper() else "dog"

# Subsample for a quicker first run (remove [:400] for the full dataset)
pet_items = list(get_image_files(pets_path))[:400]

dblock = DataBlock(
    blocks=(ImageBlock, CategoryBlock),
    get_items=lambda _: pet_items,
    splitter=RandomSplitter(valid_pct=0.2, seed=42),
    get_y=pet_species,
    item_tfms=Resize(300),
)

dls = dblock.dataloaders(pets_path, bs=16, num_workers=0)
dls.vocab, len(dls.train_ds), len(dls.valid_ds)

Choose which species is class A (target_score = 1.0). With pet_species, the vocabulary is cat and dog:

class_a_name = "cat"
class_b_name = "dog"
class_a_name, class_b_name, dls.vocab

from tell_me_why.model_aae import AAE
from tell_me_why.training import train_xaaenet

model = AAE(input_size=300, encoding_dims=128)

learn = train_xaaenet(
    model,
    dls,
    epochs_adv=1,
    epochs_ae=1,
    epochs_classif=2,
    save_tsne=False,
    save_pls=False,
    extract_latent=True,
    show_latent_figures=False,
)

3. Validation latent codes `z` and binary targets

Collect one latent row per validation image by running the trained model on the validation dataloader. Row order matches learn.dls.valid (no shuffling on the validation set).

Do not reorder images before the feature table in the next step.

import numpy as np
import torch


@torch.no_grad()
def latent_and_targets_from_split(learn, ds_idx=1):
    learn.model.eval()
    z_parts, y_parts = [], []
    for xb, yb in learn.dls[ds_idx]:
        learn.model(xb)
        z_parts.append(learn.model.z.detach().cpu())
        y_parts.append(yb.cpu())
    z = torch.cat(z_parts).numpy()
    targets = torch.cat(y_parts).view(-1).numpy()
    return z, targets

z_val, targets_val = latent_and_targets_from_split(learn, ds_idx=1)
target_score = (targets_val == learn.dls.vocab.o2i[class_a_name]).astype(np.float64)
z_val.shape, target_score.mean()

# Same row order as z_val / target_score
image_paths = [str(p) for p in learn.dls.valid.items]
len(image_paths), image_paths[0]

4. Feature score table

compute_feature_score_table turns each image path into numeric cues (brightness, color, texture, …). Row order must match z_val on the validation split.

The table below uses the same PETS sample paths as above. After training, score the full validation set.

from pathlib import Path

from tell_me_why.feature_scores import compute_feature_score_table


def format_feature_table(df):
    """Drop full paths; show file names first (same layout as the Feature scores example)."""
    out = df.copy()
    out["image_name"] = out["Source_File_Path"].map(lambda path: Path(path).name)
    out = out.drop(columns="Source_File_Path")
    return out[["image_name", *[col for col in out.columns if col != "image_name"]]]

pets_scores = compute_feature_score_table(
    pet_images,
    score_names=[
        "brightness",
        "variance",
        "redness_dominance",
        "symmetry_error",
        "fft_high_frequency_ratio",
    ],
    on_error="raise",
)
format_feature_table(pets_scores).round(4)


Computing brightness:   0%|          | 0/8 [00:00<?, ?it/s]
Computing brightness: 100%|##########| 8/8 [00:00<00:00, 562.34it/s]

Computing variance / contrast:   0%|          | 0/8 [00:00<?, ?it/s]
Computing variance / contrast: 100%|##########| 8/8 [00:00<00:00, 543.46it/s]

Computing red dominance:   0%|          | 0/8 [00:00<?, ?it/s]
Computing red dominance: 100%|##########| 8/8 [00:00<00:00, 415.47it/s]

Computing symmetry:   0%|          | 0/8 [00:00<?, ?it/s]
Computing symmetry: 100%|##########| 8/8 [00:00<00:00, 567.84it/s]

Computing FFT scores:   0%|          | 0/8 [00:00<?, ?it/s]
Computing FFT scores: 100%|##########| 8/8 [00:00<00:00, 391.04it/s]

	image_name	brightness	variance	redness_dominance	symmetry_error	fft_high_frequency_ratio
0	shiba_inu_14.jpg	0.7555	0.0176	0.5491	0.0889	0.5315
1	Bombay_58.jpg	0.1711	0.0477	0.7016	0.1534	0.4465
2	Siamese_173.jpg	0.4284	0.0479	0.5613	0.2105	0.5394
3	miniature_pinscher_4.jpg	0.5688	0.0625	0.5165	0.2563	0.4899
4	beagle_31.jpg	0.4799	0.0355	0.4072	0.2172	0.6502
5	chihuahua_75.jpg	0.4795	0.0594	0.7384	0.2793	0.4448
6	Bengal_58.jpg	0.6254	0.0477	0.5762	0.2379	0.4307
7	Russian_Blue_130.jpg	0.5452	0.0665	0.5519	0.1784	0.4253

Scores on the validation split

After training, build the table on every validation image (all default feature columns). Use the same paths as in step 3, in the same order as z_val.

df_features = compute_feature_score_table(image_paths)
format_feature_table(df_features).round(4)

5. Classification interpretation figures

Compare latent axis PLS1 to each feature. The section Reading the alignment panels and Reading the importance ranking on the Classification Interpretation page explains how to read the figures.

from tell_me_why.visualization import run_pls_feature_figures

out = run_pls_feature_figures(
    z_val,
    target_score,
    df_features,
    target_label=class_a_name,
    mask_positive=target_score.astype(bool),
    positive_label=class_a_name,
    negative_label=class_b_name,
    save_dir=learn.path / learn.model_dir / "interpretation",
    show=False,
)

out["importance_rank"][:5]

Reading the results (short checklist)

Importance ranking — features at the top have the strongest signed r² with PLS1 toward class A; near-zero bars were weakly aligned on this axis.
Alignment panels — diagonal green line + separated grey/blue clouds suggest a pixel cue that co-varies with the latent decision axis; a flat line suggests little linear link.
Causality — alignment is a comparison between latent space and hand-crafted scores, not a proof of what neurons implement.

Next steps

Train longer and on the full PETS split (or your own binary dataset).
Swap AAE for EncoderWithAAEBlocks when you bring a custom encoder.
Reuse the same z + df_features + run_pls_feature_figures pipeline after any binary xAAEnet training run.
